Virtual Walk?

Description

  • Motivation

I’m interested in virtual space/realms and how it interacts with the physical world or how the physical world interacts with virtual space, whether it’s through games and a controller, being a part of a physical place in a parallel virtual world, or through actual physical movement. I’m also what people may consider a “gamer” and interested in the whole interaction interface they use, whether its web-cams, standard controllers, motion controllers, etc and how those affect the way we interact with the virtual.

  • Interactive paradigm

For now I think I’ll keep it somewhat simple and add to it as I get the general concept working. Basically, I want to create something that takes real world physical movements, like walking, or turning of a person’s head, and translate that to movement/interaction in a virtual space. For example, physical walking would cause your virtual character to walk.

  • Technical Description

I’ll be using the accelerometers in wiimotes to gather movement values of a person and using a program like processing to translate the values into movement in a virtual space. Multiple wiimotes will be used, in fact two will be used, to measure a person’s walking movement and head movement. I’ll either create something in processing that will interact with the person’s movement or use/create a virtual 3D space in which the person’s virtual avatar would move around in according to the person’s movement.

Visualization

  • Functional Diagrams

[USER] -> [Accelerometer/Wiimote + USER Motion] -> [Processing/Wiimote-to-PC Communication] -> [Screen/Visual]

  • Visual Concept

VIS 145B Visual.jpg

Documentation

  • Description

The project ended up being a combination of virtual space and real world space where two people would navigate the virtual space together. The first person with the wiimotes attached to them would navigate real world space and virtual space, however without really knowing their position in virtual space, the second would be at a computer screen relaying directions to the first person to where to go in the virtual space while the first person would have to troubleshoot ways to navigate both spaces, avoiding real world and virtual obstacles.

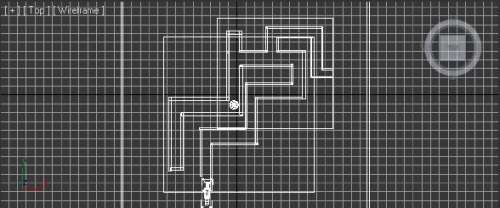

  • Maze Layout

Maze Layout.jpg

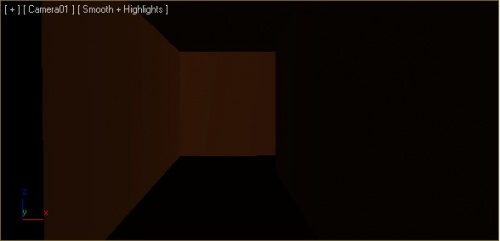

  • Maze

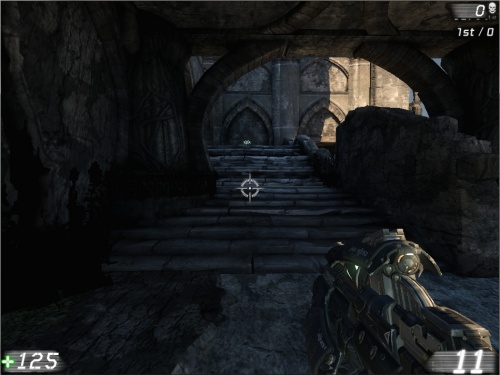

  • Unreal Engine


GlovePIE Code/Wiimote Code

/*

   A = Left-Click, + = Right-Click, Down = Middle-Click
   If var.HoldToMove is true, Hold B to move
   If var.HoldToMove is false, Hold B to stop ...
   ...and you can flip Wiimote upside-down to use normal mouse
   Home = Battery Test
  • /

// ==== Buttons ================================================================ var.MoveButton = wiimote1.B mouse.LeftButton = wiimote1.A mouse.RightButton = wiimote1.Down //mouse.MiddleButton = wiimote.Plus var.BatteryTestButton = wiimote1.Home keyboard.W = var.updir keyboard.W = var.downdir keyboard.D = var.right keyboard.A = var.left


keyboard.W = var.forward //keyboard.S = var.backward /* keyboard.G = wiimote.Plus keyboard.H = wiimote.Minus keyboard.I = wiimote.One keyboard.J = wiimote.Two

  • /

//Y Axis

if (not var.updir) && (not var.downdir) {

  var.updir = wiimote2.RelAccY > 20
  if var.updir {
     wait 100ms
     var.updir = false
     }
 }

if (not var.downdir) && (not var.updir) {

  var.downdir = wiimote2.RelAccY < -20
  if var.downdir {
     wait 100ms
     var.downdir = false
     }
  }

//X Axis if (not var.right) && (not var.left){

  var.right = wiimote2.RelAccX > 20
  if var.right {
     wait 100ms
     var.right = false
     }
 }

if (not var.left) && (not var.right){

  var.left = wiimote2.RelAccX < -20
  if var.left{
     wait 100ms
     var.left = false
     }
  }

//Z Axis if (not var.forward) && (not var.backward){

  var.forward = wiimote2.RelAccZ > 10
  if var.forward {
     wait 100ms
     var.forward = false
     }
 }

if (not var.backward) && (not var.forward){

  var.backward = wiimote2.RelAccZ < -10
  if var.backward{
     wait 100ms
     var.backward = false
     }
  }


// ==== Options ================================================================ var.HoldToMove = true // true = Hold MoveButton to move // false = Hold MoveButton to stop, flip Wiimote upside-down to use normal mouse

var.EdgeStop = true // Stops movement at the edge of the screen

var.Speed = 1 // 0 to 100 // Overall speed of movement

var.Mouse_Precision = 0 // 0 to 15 // Low values smooth the movement of the cursor

PIE.FrameRate = 15hz // Wii MotionPlus has a refresh rate of 100hz // ==== Wii MotionPlus ========================================================= // Start of Wii Motion Plus script IF HeldDown(abs(wiimote1.SmoothRoll)>135, 1 second) THEN var.WiimoteUpsideDown = true ELSE var.WiimoteUpsideDown = false IF var.HoldToMove = true {

  var.Move = var.MoveButton

ELSE

  IF var.MoveButton = false AND var.WiimoteUpsideDown = false THEN var.Move = true ELSE var.Move = false

} IF wiimote1.HasMotionPlus = false THEN var.CalibDebug = "[ WiiMotion Plus NOT DETECTED! ]" ELSE var.CalibDebug = "" IF wiimote1.HasMotionPlus = true AND var.Move = true {

  var.YawSpeed = wiimote1.MotionPlus.YawSpeed
  var.PitchSpeed = wiimote1.MotionPlus.PitchSpeed
  IF SameValue( Smooth(wiimote1.Roll, 30), wiimote1.Roll, 50) THEN var.Roll = Smooth(wiimote1.Roll, 30) ELSE var.Roll = wiimote1.Roll
  IF var.Roll < 0 AND var.Roll >= -90 {
     var.XYswap = 1 - EnsureMapRange(var.Roll, -90, 0, 0, 1)
     var.RightDown = -1
     var.TopUp = 1
  }
  IF var.Roll <= 90 AND var.Roll >= 0 {
     var.XYswap = 1 - EnsureMapRange(var.Roll, 90, 0, 0, 1)
     var.RightDown = 1
     var.TopUp = 1
  }
  IF var.Roll > 90 AND var.Roll <= 180 {
     var.XYswap = 1 - EnsureMapRange(var.Roll, 90, 180, 0, 1)
     var.RightDown = 1
     var.TopUp = -1
  }
  IF var.Roll < -90 AND var.Roll >= -180 {
     var.XYswap = 1 - EnsureMapRange(var.Roll, -90, -180, 0, 1)
     var.RightDown = -1
     var.TopUp = -1
  }
  var.TopUpFix = Smooth(var.TopUp,30) / abs(Smooth(var.TopUp,30))
  var.RightDownFix = Smooth(var.RightDown,30) / abs(Smooth(var.RightDown,30))
  var.SpeedX = var.TopUpFix * var.YawSpeed - ( var.TopUpFix * var.YawSpeed * var.XYswap ) + ( var.RightDownFix * var.PitchSpeed * var.XYswap )
  var.SpeedY = var.TopUpFix * var.PitchSpeed - ( var.TopUpFix * var.PitchSpeed * var.XYswap) + ( -var.RightDownFix * var.YawSpeed * var.XYswap )
  var.Mouse_X = var.Mouse_X + ( var.SpeedX / (20500 - EnsureMapRange(var.Speed, 0, 100, 0, 20000) ) )
  var.Mouse_Y = var.Mouse_Y - ( var.SpeedY / (20500 - EnsureMapRange(var.Speed, 0, 100, 0, 20000) ) )

} IF var.Move = false {

  IF delta(var.Move) = true {
     var.Mouse_X = var.CursorX
     var.Mouse_Y = var.CursorY
  }
  var.Mouse_X = mouse.x
  var.Mouse_Y = mouse.y

ELSE

  IF var.EdgeStop = true {
     var.Mouse_X = EnsureRange(var.Mouse_X, 0, 1)
     var.Mouse_Y = EnsureRange(var.Mouse_Y, 0, 1)
  }
  mouse.x = var.CursorX
  mouse.y = var.CursorY
  IF delta(var.Move) = true {
     var.Mouse_X = var.CursorX
     var.Mouse_Y = var.CursorY
  }

}

// ==== Dynamic Motion Smoothing =============================================== // This automatically adjusts the smoothness // of the movement based on the cursor's speed. var.Mouse_Speed_X = int(abs(delta(var.Mouse_X))*1000) var.Mouse_Speed_Y = int(abs(delta(var.Mouse_Y))*1000) var.Mouse_Speed_XY = int(sqrt(var.Mouse_Speed_X + var.Mouse_Speed_Y) * var.Mouse_Precision) IF var.Mouse_Speed_XY >= 30 THEN var.Mouse_SmoothHold = 0 ELSE var.Mouse_SmoothHold = 30 - var.Mouse_Speed_XY var.Mouse_SmoothLimit = 30 - EnsureRange(var.Mouse_Precision*2, 0, 30) IF var.Mouse_SmoothHold < var.Mouse_Smooth THEN var.Mouse_Smooth = var.Mouse_Smooth - (1 + int(EnsureMapRange(var.Mouse_SmoothHold, 0, 30, 30, 0))) IF var.Mouse_SmoothHold > var.Mouse_Smooth OR (var.Mouse_SmoothHold = 30 AND var.Mouse_Smooth <= 29) {

  wait EnsureMapRange(var.Mouse_Smooth, 0, 29, 0, 100)ms
  IF var.Mouse_Smooth < var.Mouse_SmoothLimit THEN var.Mouse_Smooth++

} IF var.Mouse_Smooth <= 0 THEN var.Mouse_Smooth = 0 IF var.Mouse_Smooth <= 0 THEN var.CursorX = var.Mouse_X IF var.Mouse_Smooth <= 0 THEN var.CursorY = var.Mouse_Y IF var.Mouse_Smooth = 1 THEN var.CursorX = Smooth(var.Mouse_X, 1) IF var.Mouse_Smooth = 1 THEN var.CursorY = Smooth(var.Mouse_Y, 1) IF var.Mouse_Smooth = 2 THEN var.CursorX = Smooth(var.Mouse_X, 2) IF var.Mouse_Smooth = 2 THEN var.CursorY = Smooth(var.Mouse_Y, 2) IF var.Mouse_Smooth = 3 THEN var.CursorX = Smooth(var.Mouse_X, 3) IF var.Mouse_Smooth = 3 THEN var.CursorY = Smooth(var.Mouse_Y, 3) IF var.Mouse_Smooth = 4 THEN var.CursorX = Smooth(var.Mouse_X, 4) IF var.Mouse_Smooth = 4 THEN var.CursorY = Smooth(var.Mouse_Y, 4) IF var.Mouse_Smooth = 5 THEN var.CursorX = Smooth(var.Mouse_X, 5) IF var.Mouse_Smooth = 5 THEN var.CursorY = Smooth(var.Mouse_Y, 5) IF var.Mouse_Smooth = 6 THEN var.CursorX = Smooth(var.Mouse_X, 6) IF var.Mouse_Smooth = 6 THEN var.CursorY = Smooth(var.Mouse_Y, 6) IF var.Mouse_Smooth = 7 THEN var.CursorX = Smooth(var.Mouse_X, 7) IF var.Mouse_Smooth = 7 THEN var.CursorY = Smooth(var.Mouse_Y, 7) IF var.Mouse_Smooth = 8 THEN var.CursorX = Smooth(var.Mouse_X, 8) IF var.Mouse_Smooth = 8 THEN var.CursorY = Smooth(var.Mouse_Y, 8) IF var.Mouse_Smooth = 9 THEN var.CursorX = Smooth(var.Mouse_X, 9) IF var.Mouse_Smooth = 9 THEN var.CursorY = Smooth(var.Mouse_Y, 9) IF var.Mouse_Smooth = 10 THEN var.CursorX = Smooth(var.Mouse_X, 10) IF var.Mouse_Smooth = 10 THEN var.CursorY = Smooth(var.Mouse_Y, 10) IF var.Mouse_Smooth = 11 THEN var.CursorX = Smooth(var.Mouse_X, 11) IF var.Mouse_Smooth = 11 THEN var.CursorY = Smooth(var.Mouse_Y, 11) IF var.Mouse_Smooth = 12 THEN var.CursorX = Smooth(var.Mouse_X, 12) IF var.Mouse_Smooth = 12 THEN var.CursorY = Smooth(var.Mouse_Y, 12) IF var.Mouse_Smooth = 13 THEN var.CursorX = Smooth(var.Mouse_X, 13) IF var.Mouse_Smooth = 13 THEN var.CursorY = Smooth(var.Mouse_Y, 13) IF var.Mouse_Smooth = 14 THEN var.CursorX = Smooth(var.Mouse_X, 14) IF var.Mouse_Smooth = 14 THEN var.CursorY = Smooth(var.Mouse_Y, 14) IF var.Mouse_Smooth = 15 THEN var.CursorX = Smooth(var.Mouse_X, 15) IF var.Mouse_Smooth = 15 THEN var.CursorY = Smooth(var.Mouse_Y, 15) IF var.Mouse_Smooth = 16 THEN var.CursorX = Smooth(var.Mouse_X, 16) IF var.Mouse_Smooth = 16 THEN var.CursorY = Smooth(var.Mouse_Y, 16) IF var.Mouse_Smooth = 17 THEN var.CursorX = Smooth(var.Mouse_X, 17) IF var.Mouse_Smooth = 17 THEN var.CursorY = Smooth(var.Mouse_Y, 17) IF var.Mouse_Smooth = 18 THEN var.CursorX = Smooth(var.Mouse_X, 18) IF var.Mouse_Smooth = 18 THEN var.CursorY = Smooth(var.Mouse_Y, 18) IF var.Mouse_Smooth = 19 THEN var.CursorX = Smooth(var.Mouse_X, 19) IF var.Mouse_Smooth = 19 THEN var.CursorY = Smooth(var.Mouse_Y, 19) IF var.Mouse_Smooth = 20 THEN var.CursorX = Smooth(var.Mouse_X, 20) IF var.Mouse_Smooth = 20 THEN var.CursorY = Smooth(var.Mouse_Y, 20) IF var.Mouse_Smooth = 21 THEN var.CursorX = Smooth(var.Mouse_X, 21) IF var.Mouse_Smooth = 21 THEN var.CursorY = Smooth(var.Mouse_Y, 21) IF var.Mouse_Smooth = 22 THEN var.CursorX = Smooth(var.Mouse_X, 22) IF var.Mouse_Smooth = 22 THEN var.CursorY = Smooth(var.Mouse_Y, 22) IF var.Mouse_Smooth = 23 THEN var.CursorX = Smooth(var.Mouse_X, 23) IF var.Mouse_Smooth = 23 THEN var.CursorY = Smooth(var.Mouse_Y, 23) IF var.Mouse_Smooth = 24 THEN var.CursorX = Smooth(var.Mouse_X, 24) IF var.Mouse_Smooth = 24 THEN var.CursorY = Smooth(var.Mouse_Y, 24) IF var.Mouse_Smooth = 25 THEN var.CursorX = Smooth(var.Mouse_X, 25) IF var.Mouse_Smooth = 25 THEN var.CursorY = Smooth(var.Mouse_Y, 25) IF var.Mouse_Smooth = 26 THEN var.CursorX = Smooth(var.Mouse_X, 26) IF var.Mouse_Smooth = 26 THEN var.CursorY = Smooth(var.Mouse_Y, 26) IF var.Mouse_Smooth = 27 THEN var.CursorX = Smooth(var.Mouse_X, 27) IF var.Mouse_Smooth = 27 THEN var.CursorY = Smooth(var.Mouse_Y, 27) IF var.Mouse_Smooth = 28 THEN var.CursorX = Smooth(var.Mouse_X, 28) IF var.Mouse_Smooth = 28 THEN var.CursorY = Smooth(var.Mouse_Y, 28) IF var.Mouse_Smooth = 29 THEN var.CursorX = Smooth(var.Mouse_X, 29) IF var.Mouse_Smooth = 29 THEN var.CursorY = Smooth(var.Mouse_Y, 29) IF var.Mouse_Smooth >= 30 THEN var.CursorX = Smooth(var.Mouse_X, 30) IF var.Mouse_Smooth >= 30 THEN var.CursorY = Smooth(var.Mouse_Y, 30)

// ==== Wiimote Battery Test ================================================= // Fills up with blinking LEDs to 50% // then fills with solid LEDs to 100% if var.BatteryDebug = false then var.BatteryDebug = "" if var.BatteryTestButton = true and var.BatteryDisplayOn != true {

  wiimote1.Report15 = 0x80 | int(wiimote1.Rumble)
  var.BatteryLevel = wiimote1.Battery
  var.BatteryDebug = " [ Battery : "+(int(var.BatteryLevel/1.92))+"% ] "
  var.BatteryLEDs = 0
  var.BatteryLEDbefore = wiimote1.LEDs
  var.BatteryDisplayOn = true

} if var.BatteryDisplayOn = true {

  if var.BatteryLEDs <= var.BatteryLevel {
     var.BatteryLEDs = var.BatteryLEDs + 12
     wait 60ms
  else
     wait 1000ms
     var.BatteryDisplayOn = "done"
  }
  if var.BatteryLEDs <= 96 {
     var.BatteryLED_A = 0
     if var.BatteryLEDs <= 24 then var.BatteryLED_B = 1
     if var.BatteryLEDs > 24 and var.BatteryLEDs <= 48 then var.BatteryLED_B = 3
     if var.BatteryLEDs > 48 and var.BatteryLEDs <= 72 then var.BatteryLED_B = 7
     if var.BatteryLEDs > 72 then var.BatteryLED_B = 15
  else
     if var.BatteryLEDs <= 120 then var.BatteryLED_A = 1
     if var.BatteryLEDs > 120 and var.BatteryLEDs <= 144 then var.BatteryLED_A = 3
     if var.BatteryLEDs > 144 and var.BatteryLEDs <= 168 then var.BatteryLED_A = 7
     if var.BatteryLEDs > 168 then var.BatteryLED_A = 15
  }
  wiimote1.LEDs = var.BatteryLED_A
  wait 40ms
  wiimote1.LEDs = var.BatteryLED_B
  wait 20ms

elseif var.BatteryDisplayOn = "done"

  wiimote1.LEDs = 0
  wait 2 seconds
  wiimote1.LEDs = var.BatteryLEDbefore
  var.BatteryDisplayOn = false

}

debug = var.CalibDebug + var.DebugPrecision + var.DebugSmooth + var.BatteryDebug var.DebugPrecision = " [ Precision: "+ var.Mouse_Precision +" ]" var.DebugSmooth = " [ Smooth: "+ int(var.Mouse_Smooth) +" ]"
